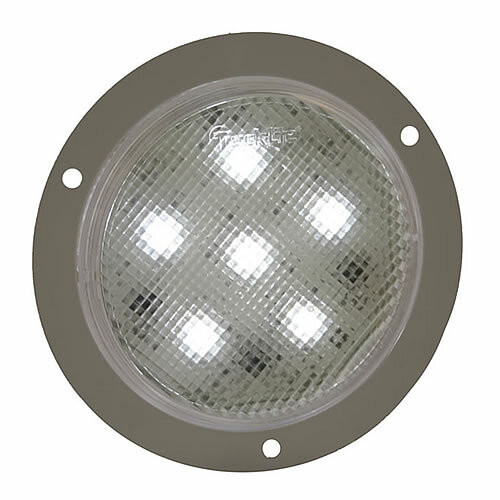

44 SERIES LED DOME LAMP, 6 DIODE PATTERN
Common Root | 44339C |
---|---|
Country of Origin | ZZ |
Current_AMP | .54 |
Features & Benefits | Low profile lamp, approximately 1''deep for where space is at a premium|Low profile back due to modified plug connection|Same 6 diode pattern used in Truck-Lite Stop/Turn/Tail, Back-Up and Strobe withoverride lamps|Features robust and cost effective design|Virtually impervious to shock and vibration|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture|Designed to operate in extremely cold temperatures|Broad light pattern with approximately 360 lumens of light output|US Registered TM #3483147 |
Feature Highlights | Stripped End|Hardwired|Bulk|12 V |
Housing Material | Polycarbonate |
Itm Id | 3803722 |
KIT (Yes/No) | No |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lens Color | Clear |
Lens Height_INH | 4.25 |
Lens Material | Polycarbonate |
Lens Width_INH | 4.25 |
Mount/Trim Color | Gray |
Mount/Trim Material | Polycarbonate |
Mount Type | Flange Mount |
Number of Diodes/Bulbs | 6 |
Number of Wires | 2 |
Packaging Type | Bulk |
Part Number | 44339C3 |
Plug Side One | Hardwired |
Plug Side Two | Stripped End |
Sealed/Bulb Replaceable | Sealed |
Std Carton Qty | 50 |
Switch | No |
Taxonomy | Lights.Interior Utility & Dome Lights |
Total Depth_MMT | 27.18 |
Total Depth | 1.07 |
Total Height_MMT | 109.47 |
Total Height | 4.31 |
Total Width_MMT | 109.47 |
Total Width | 4.31 |
UNSPSC/Tariff | 25173000 |
UPC | 0735111184621 |
VMRS | 034-004-142 |
Voltage (VLT) | 12 |
Weight | 26.81 |
