Description

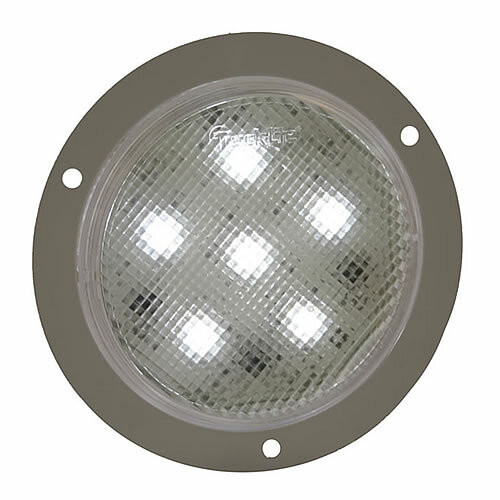

44 SERIES LED DOME LAMP, 6 DIODE PATTERN
| Common Root | 44339C |
|---|---|
| Country of Origin | ZZ |
| Current_AMP | .54 |
| Features & Benefits | Low profile lamp, approximately 1''deep for where space is at a premium|Low profile back due to modified plug connection|Same 6 diode pattern used in Truck-Lite Stop/Turn/Tail, Back-Up and Strobe withoverride lamps|Features robust and cost effective design|Virtually impervious to shock and vibration|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture|Designed to operate in extremely cold temperatures|Broad light pattern with approximately 360 lumens of light output|US Registered TM #3483147 |
| Feature Highlights | Stripped End|Hardwired|Bulk|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3803722 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Lens Height_INH | 4.25 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.25 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number of Diodes/Bulbs | 6 |
| Number of Wires | 2 |
| Packaging Type | Bulk |
| Part Number | 44339C3 |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 50 |
| Switch | No |
| Taxonomy | Lights.Interior Utility & Dome Lights |
| Total Depth_MMT | 27.18 |
| Total Depth | 1.07 |
| Total Height_MMT | 109.47 |
| Total Height | 4.31 |
| Total Width_MMT | 109.47 |
| Total Width | 4.31 |
| UNSPSC/Tariff | 25173000 |
| UPC | 0735111184621 |
| VMRS | 034-004-142 |
| Voltage (VLT) | 12 |
| Weight | 26.81 |
Extra Information
Brand:
TruckLite
Identifier Exists:
True
